VFD Bypass Panels - UL508A Bottom Mount

Specifically designed for any fan, pump, conveyor or air handling VFD application.

VFD Bypass Panels as low as $1,625.60! Configure below.

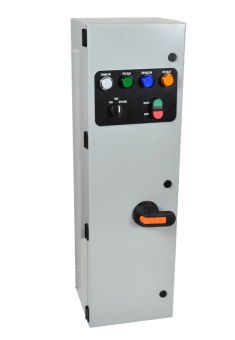

VFD Bypass Panel with Local Bypass Control

VFD Bypass Panel without Local Bypass Control

Product Resources

Product Features

UL508A Bottom Mount.
Available in two versions of Carbon Steel (Type 1 or Type 3R, 4 & 12).
Mechanically interlocked contactors ensure a seamless transition between VFD and bypass modes for motor operation.
Factory wired with a control transformer saving you time and reducing installation costs.
Panels come with all the features and benefits of our Series 300 Contactors, Series TB IEC Terminal Blocks, and Series 22mm IEC Pilot Devices.
Series ECP-BP VFD Bypass Panels do not qualify for free ground shipping.
Shipping Notice: Not available for same-day shipping. We assemble, test and ship fully assembled and wired panels within 15 days. For expedited shipment options contact c3controls.

Configure Your Item Here

Please configure the product to display product details.

The c3controls’ ECP-BP series offers a configurable and UL 508A-listed solution for VFD bypass applications.

This series provides a two or three contactor bypass design that seamlessly integrates with various VFD brands for increased flexibility. Available in Type 1 and Type 4 carbon steel enclosures, these panels fit directly below your VFD of choice and are conveniently shaped as tall slim panels to minimize their footprint.

Proven

Our Series ECP-BP Bottom Mount VFD Bypass Panels are UL508A Listed and CE marked meeting global standards requirements.

Series ECP-BP VFD Bypass Panel with Local Bypass Control (interior) factory assembled and wired

Factory Assembled & Wired

Factory-assembled and wired bypass panels offer the convenience of a single catalog number, resulting in a more efficient bill of materials.

Series ECP-BP VFD Bypass Panel without Local Bypass Control (interior)

Pre-Configured

The contactor, disconnect, and transformer selections have been pre-configured based on your fuse size, streamlining the process of ordering and configuring fully assembled panels.

Series ECP-BP Bypass Panel (interior), SCCR

High Fault SCCR

Configuration options for high fault short circuit current rating of up to 100kA providing safety and reliability in high fault applications.

Series ECP-BP VFD Bypass Panel with Local Bypass Control

Pre-Wired Control Circuits

The bypass panel control circuits come prewired with a control transformer that supplies 24VAC power, facilitating straightforward field installation. Additionally, all terminal blocks and wires are clearly labeled for ease of use.
