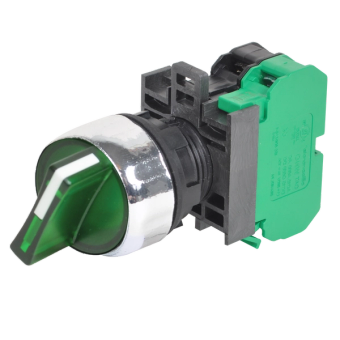

22mm IEC Selector Switches starting at only $5.39! Configure below.
- Illuminated, non-illuminated and keyed
- 2- & 3-Position in both maintained and spring return
- Multi-voltage & full voltage light units in a wide range of voltages
- LED voltage tolerance is +/- 10%
- Contact blocks can be stacked for up to 4 circuits, providing the flexibility to operate multiple circuits from a single operator
Top 5 Best Sellers
- 2-Pos./Main., Std. Handle White, NO
p/n: W22S2-HW-10 - 3-Pos., Main., Std. Handle White, NO/NO
p/n: W22S3-HW-10/10 - 3-Pos., Main., Illum., FV 24VAC/VDC, Green Std. Handle, Green LED, NO/NO
p/n: W22IS3-IHG-FM24LG-10/10 - 3-Pos., Main., Illum., FV 120VAC/VDC, Green Std. Handle, Green LED, NO/NO
p/n: W22IS3-IHG-FM120LG-10/10 - 2-Pos., Main., Illum., MV 20-277VAC/VDC, Green Std. Handle, White LED, NO/NO
p/n: W22IS2-IHG-MVDLW-10/10
Pilot devices are mainly used in the commercial or industrial applications where human-to-machine interface is required. Typically used as a part of a system, automated process, or a control panel, these devices provide information on condition and control monitoring of different types of processes, machinery, and equipment.
Beyond fit, form, features, and functionality — turning savvy designs into better products.
The removable latching device enables the user to wire the contact blocks and light modules separate from the operator and outside the confined space of the control panel.
The removable latching device enables the user to wire the contact blocks and light modules separate from the operator and outside the confined space of the control panel.
Manufactured to be the highest quality—inside and out. With its metal appearance and sleek design, you know you are getting the quality you deserve.
Assumes the lead in the industry with the shortest depth behind the panel.
Our snap-on contact blocks are color coded for quick circuit identification and feature 35° angled captive terminal screws and self-lifting pressure plates for fast and easy installation. Contact blocks can be stacked 2 deep and up to 3 across for a total of 6 circuits.
Our single cam design eliminates the need for multiple cam and selector switch configurations, reducing inventory and saving you labor time and costs.
Multi-voltage light modules can be used with 22mm IEC modular pilot lights, illuminated push buttons, push-to-test lights, and illuminated selector switches.
Manufactured with industrial grade plastics for strength and less weight, and we use metal where it matters. The tough polyester construction of our 22mm IEC pilot devices provides electrical insulation, resists corrosion, and rejects moisture.
The modular design of c3controls’ products reduces inventory and opens up multiple possibilities when configuring an operator interface.
Still not sure? We offer free product samples for many of our products. No strings attached. We believe in our products and we think you will too, once you give them a try.

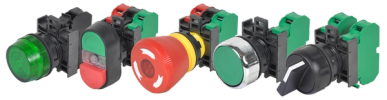

Pilot devices designed to provide exceptional performance and long electrical life through a wide range of switching capabilities. Each delivering easy installation, distinct functionality, and ensuring optimal performance and safety in the most demanding applications.
UL Listed and CE marked, our 22mm IEC operators are suitable for use anywhere in the world. The product certifications and electrical ratings are clearly marked on the outside of the contact blocks for easy reference during installation.
Our single cam design eliminates the need for multiple cam and selector switch configurations, reducing inventory and saving you labor time and costs.

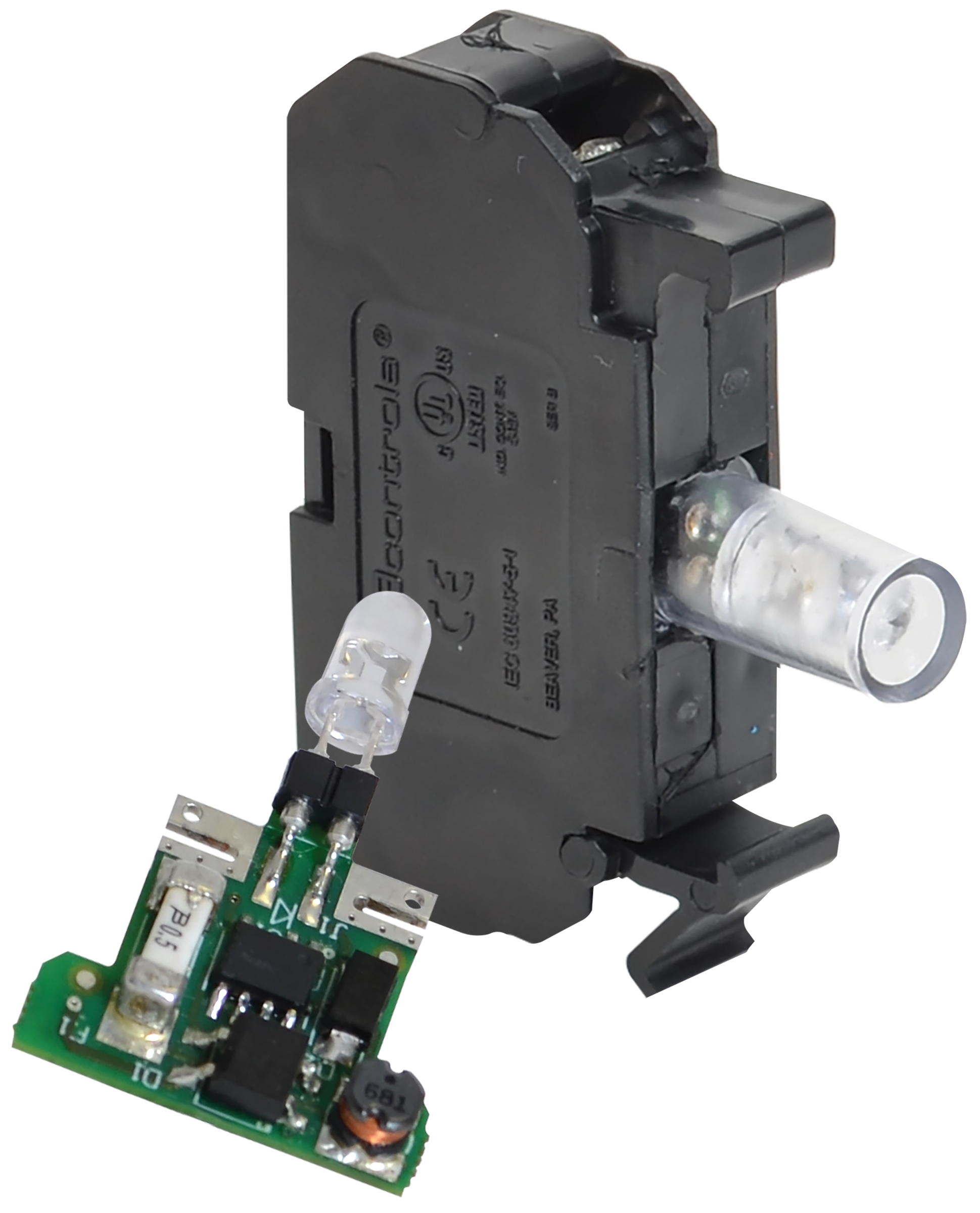

Our non-relampable multi-voltage light modules were designed to operate from 20V to 277V AC or DC without losing light intensity and can be used with any 22mm IEC illuminated operator — significantly reducing inventory costs and simplifying installation.
Built-in self-wiping cleaning action and high point contact pressure for low-level switching. Silver contacts provide long life in normal control circuits. Gold plated contacts available for dry circuit applications.

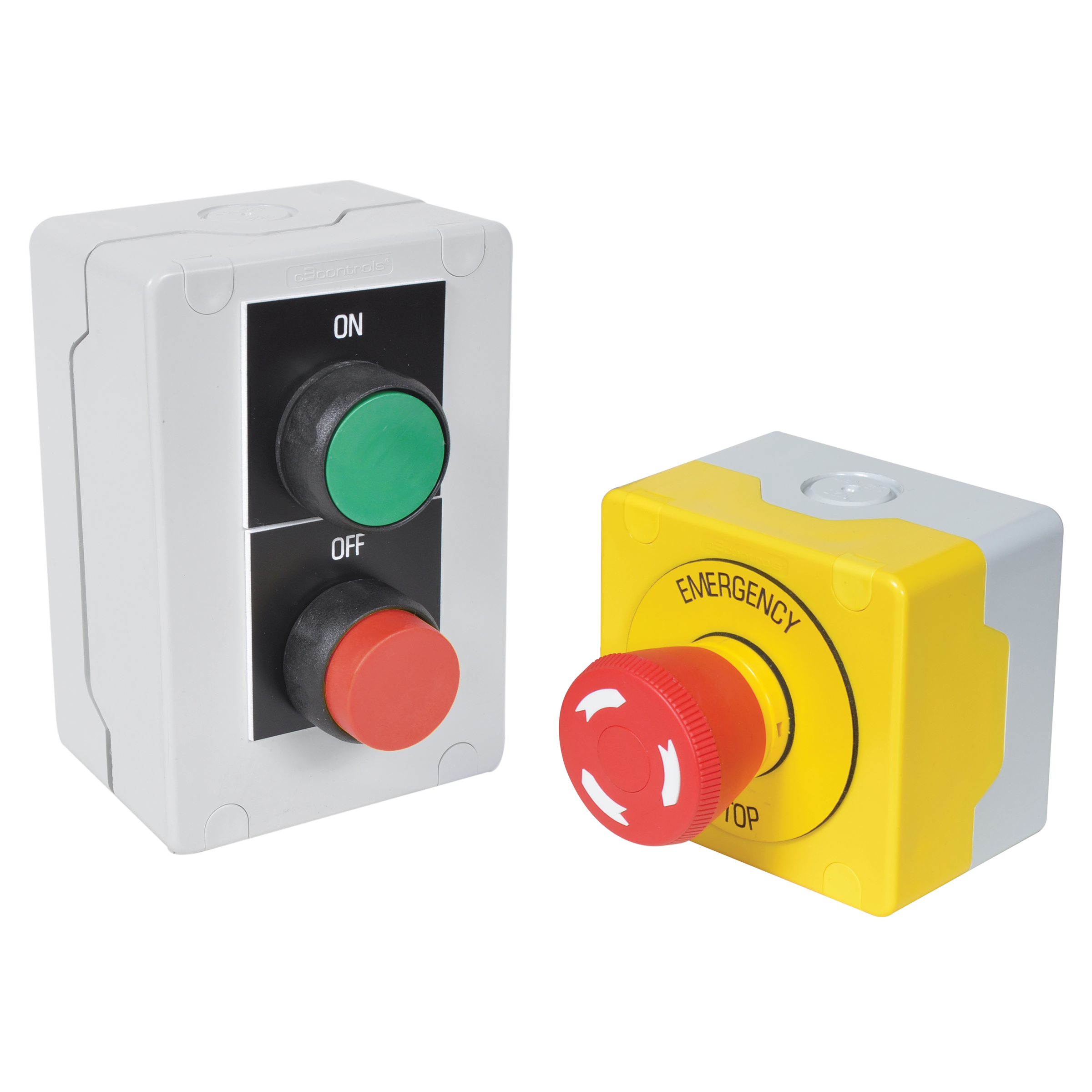

Factory assembled 22mm IEC compact control stations provide the convenience of a single catalog number, no assembly required, shorter control panel bill of materials, and easier inventory management.
Got questions? Our Customer First and Product Specialists welcome the chance to discuss your needs and answer your questions. Call 724.775.7926 or email us.
Industrial Control Basics: Part 4 – Pilot Devices
Merriam Webster defines a pilot light as, “2: an indicator light showing where a switch or circuit breaker is located or whether a motor is in operation or power is on.” While pilot devices are seemingly quite simple control, there is more to them than the definition provided by MW. They have their own terminologies, color coding, functions and standards. Find out about all of that and more in Industrial Control Basics Part 4 – Pilot Devices for Indication and Actuation.
The Basics of Pilot Devices for Indication and Actuation
Pilot devices, which are comprised of selector switches, pushbuttons, pilot lights, signal beacons, and toggle switches are mainly used in the commercial or industrial applications where human-to-machine interface is required. Based on their designs, pilot devices can be distinguished into two types – indication devices and actuation devices. Watch this video for an understanding of each type and their functions.
