Cam Switches starting at only $18.09! Configure below.
- Switch ratings from 10A to 32A up to 690V AC.
- Switch configurations in 45°, 60° & 90° and up to 6 poles.

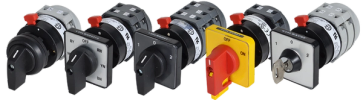

- Operators in red and black with 4 different front plate colors: yellow, black, grey and aluminum.
- Can be installed with a wide variety of options: Round Ring (no front plate), and 32mm x 32mm standard lever, and 48mm x 48mm front plate in standard lever, lockable lever and key lock.
- Certified as Manual Motor Controllers per UL standard requirements.
Top 5 Best Sellers
- Motor Rev, 2P2S, 25A, No Plate, Red Lever
p/n: CS51210-G25-N22LRN - On-Off, 2P1S, 25A, 48mm Plate, Black/Grey Lever, OFF-ON (90)
p/n: CS11192-G25-L22LBGA91 - On-Off, 2P1S, 25A, 48mm Plate, Red/Yellow Lockable Lever, OFF-ON (90)
p/n: CS11192-G25-P22LRYA91 - On-Off, 1P1S, 25A, 48mm Plate, Red/Yellow Lockable Lever, OFF-ON (90)
p/n: CS11191-G25-P22LRYA91 - On-Off, 3P2S, 32A, 48mm Plate, Black/Alum Lever, OFF-ON (60)
p/n: CS11003-G32-L22LBAA61
With up to 6 positions and up to 10 poles, in On-Off, Changeover, Ammeter, Voltmeter, and Motor Reversing, our cam switches are compact and easy to configure and assemble, helping you to reduce total installed costs and enhance the features and performance of your equipment.

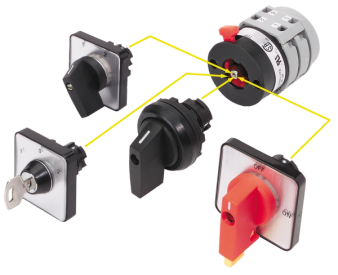

A wide variety of operators can be “mixed-and-matched” with different switch types to reduce inventory requirements and customize the switch appearance.
A wide variety of operators can be “mixed-and-matched” with different switch types to reduce inventory requirements and customize the switch appearance.
Operators mount in a standard 22.5mm hole. The latching mechanism allows the switch to be easily wired outside the control panel and then securely installed on the mounted operator.
Operators can be locked OFF with a padlock or key switch to prevent unauthorized operation of switch.
Our cam switches are Certified as Manual Motor Controllers per UL standard requirements.
High Grade engineering plastics like nylon, celcon, and glass filled polyamide provide outstanding mechanical strength and electrical insulating properties.
Switches are available with IP20 guarded terminals to protect against accidental contact with live parts.
Rated from 10A to 32A up to 690V AC with various operator types, including key lock, lever, and lockable lever for use in all your applications.
Round operator without the front plate is available for use with standard and custom legend plates for simple and convenient customization.
Available in 45⁰, 60⁰, and 90⁰ switching angles, and up to 6 positions for multiple variations.
Still not sure? We offer free product samples for many of our products. No strings attached. We believe in our products and we think you will too, once you give them a try.

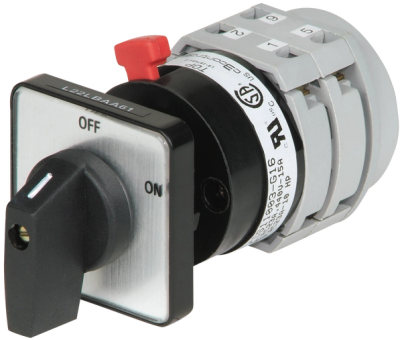

c3controls’ compact, easy to install On-Off, Changeover, Ammeter, Voltmeter, and Motor Reversing Cam Switches are available with up to 6 positions and up to 6 poles.
- Switches with IP20 guarded terminals and rated from 16A to 32A up to 690V AC
- Switch configurations in both maintained 60⁰ & 90⁰ and up to 6 poles
- Operators in red and black with 4 different front plate colors: yellow, black, grey and aluminum
- Can be installed with a wide variety of options: Round Ring (no front plate) and 48mm x 48mm front plate in standard lever, lockable lever & key lock
- Switches with IP20 guarded terminals and rated from 16A to 32A up to 690V AC
- Multiple switch configurations in maintained 60⁰ and up to 6 poles
- Operators in red and black with 4 different front plate colors: yellow, black, grey and aluminum
- Can be installed with a wide variety of options: Round Ring (no front plate) and 48mm x 48mm front plate in standard lever & key lock
- Ammeter with OFF configurations available in 1 Pole-3 Transformer & Direct Ammeter Selector without Current Transformer
- Voltmeter with OFF position configurations available in 3-Phase Line to Line & 3-Phase Line to Line and Line to Neutral
- Switches in unguarded and IP20 guarded terminals rated for both 10A and 16A up to 690V AC
- Voltmeter switching angles in 45⁰ or 90⁰, and Ammeter in 90⁰
- Operators in red and black with 4 different front plate colors: yellow, black, grey and aluminum
- Can be installed with a wide variety of options: Round Ring (no front plate) & 32mm x 32mm and 48mm x 48mm front plate in standard lever
- Switches with IP20 guarded terminals and rated from 16A to 32A up to 690V AC
- Switch configurations in maintained 60⁰ and up to 3 poles
- Operators in red and black with 4 different front plate colors: yellow, black, grey and aluminum
- Can be installed with a wide variety of options: Round Ring (no front plate) and 48mm x 48mm front plate in standard lever
Our spring return operators are rated Type 1, 3, 3R, 12 and IP65 to withstand the most punishing environments. Our maintained operators share the same ratings with the addition of the 4/4X rating.
Our cam switch operators meet UL, CSA, and IEC standard requirements making them suitable for use in global applications.
Markings are integral to the front plate and protected so they won’t wear off over time.
Our switches are available with IP20 guarded terminals to protect against accidental contact with live parts.
The simple latching mechanism securely assembles the switch with the operator―the switch can be easily and conveniently wired outside the confined space of the control panel, and then installed on the operator that has already been mounted.
Combination head terminal screws include captive terminal clamps for ease of wiring.
Operators can be locked OFF with a padlock or a key switch to prevent operation of the switch.
