Control Stations starting at only $15.90! Configure below.
- Available as standard pre-configured assemblies of 30mm, 22mm IEC and 22mm NEMA
- Enclosure constructions in Polycarbonate, Polyester, and Die Cast Aluminum
- Operator options in both non-illuminated and illuminated
- Each assembly comes with laminated, laser engraved legend plates
- Fully assembled and ready to use out of the box
Pilot devices are mainly used in the commercial or industrial applications where human-to-machine interface is required. Typically used as a part of a system, automated process, or a control panel, these devices provide information on condition and control monitoring of different types of processes, machinery, and equipment.
c3controls already builds the world’s leading pilot devices. It only made sense to offer these products enclosed in pre-configured and assembled control stations as well — an approach that dramatically reduces time and cost. Our factory assembled control stations and emergency stop stations meet UL standards requirements, and provide a complete solution for both indoor and outdoor applications and in extreme environments.
Factory assembled control stations provide the convenience of a single catalog number, no assembly required, shorter control panel bill of materials and easier inventory management.
Factory assembled control stations provide the convenience of a single catalog number, no assembly required, shorter control panel bill of materials and easier inventory management.
- Rugged polycarbonate construction, lightweight with high impact resistance.
- Assemblies only available with our 22mm IEC pilot devices.
- UV and corrosion resistant.
- Stainless steel hardware including #8 thread form screws.
- Enclosure cover is keyed for enhanced safety and to prevent misalignment during installation.
- Screw cover accessory, included as standard, to prevent debris build-up.
- For easy installation, the enclosure has two (2) lateral M20 conduit entries and two (2) base conduit entries.
- Standard Colors: Grey and Yellow
- UL Listed Type 1, 2, 3, 3R, 4/4X, 12 & 13
- IP66 protection
- Operating temperatures from -40 to +55 degrees C (-40 to +131 F)
- Solid fiberglass reinforced polyester construction, lightweight with high impact resistance.
- Assemblies only available with our 30mm and 22mm pilot devices.
- Non-conductive double insulated material.
- Formed-In-Place (FIP) continuous polyurethane gasket that provides a complete watertight, dust tight environmental seal.
- Recessed captive 316 Series stainless steel cover screws.
- Designed for general electrical and electronic applications and any application that has an associated environmental concern.
- Soft edge design reduces dust and other particle corrosion.
- Watertight, non-corrosive environmental design.
- UV and chemical resistant.
- Notched keyholes.
- Standard Color: RAL 7035
- Type 1, 2, 3, 3R, 4X, 12, 13 & IP66
- RoHS Compliant
- Die cast aluminum alloy construction.
- Assemblies only available with our 30mm and 22mm pilot devices.
- High temperature neoprene gaskets are oil and petroleum resistant.
- Highly efficient seal provides ingress protection against dust and moistures.
- Cover gasket is housed in a recess in the lid which mates up with a tongue.
- Oil and corrosion resistant.
- Stainless steel captive lid retaining screws.
- Standard finish: Smooth powder coat grey
- Rated Type 1, 3R, 4, 12, IP66 & IP67
- IP67 protection with a working temperature within -40 to 80 degrees C (-40 to 176 F)
Got questions? Our Customer First and Product Specialists welcome the chance to discuss your needs and answer your questions. Call 724.775.7926 or email us.
- Standard pre-configured assemblies of 22mm IEC pilot devices
- Durable polycarbonate construction, lightweight with high impact resistance
- Three enclosure frame sizes in up to three positions, and two colors: grey or yellow
- Horizontal and vertical conduit entry orientation
- A variety of operator styles and colors available in both non-illuminated and illuminated
- Multi-voltage and full voltage light units in a wide range of voltages
- Legend plates available in two sizes and 7 colors with a variety of designation options
- Fully assembled and ready to use out of the box
- Rated Type 1, 2, 3, 3R, 4/4X, 12, 13 & IP66
- Standard pre-configured Emergency Stop and Start/Stop Stations in non-illuminated 30mm, 22mm IEC, and 22mm NEMA pilot device assemblies
- Solid fiberglass reinforced polyester construction, lightweight with high impact resistance
- One enclosure frame size accommodates up to two positions
- Notched keyholes hold the assemblies in place
- Enclosure color: RAL 7035
- Legend plates are 2-ply laminated plastic, laser engraved
- Fully assembled and ready to use out of the box
- Enclosure rated Type 1, 2, 3, 3R, 4X, 12, 13 & IP66
- Pilot Devices rated Type 1, 2, 3, 3R, 4/4X, 12, 13
- Consult factory for optional conduit entry hole drilling and orientation options
- Standard pre-configured Emergency Stop and Start/Stop Stations in non-illuminated 30mm and 22mm NEMA pilot device assemblies
- Die cast aluminum alloy construction in smooth powder coat grey
- One enclosure frame size accommodates up to two positions
- Legend plates are 2-ply laminated plastic, laser engraved
- Fully assembled and ready to use out of the box
- Enclosure rated Type 4/4X, IP66 & IP67
- Pilot Devices rated Type 1, 2, 3, 3R, 4/4X, 12, 13
- Consult factory for optional conduit entry hole drilling and orientation options
Pilot devices designed to provide exceptional performance and long electrical life through a wide range of switching capabilities. Each delivering easy installation, distinct functionality, and ensuring optimal performance and safety in the most demanding applications.
UL Listed and rated Type 1, 2, 3, 3R, 4/4X, 12, 13 and IP66, making them suitable for the most demanding applications — including frequent wash-downs and varying temperatures from -40 to +55° C.
We designed the control station so the mounting is internal to the enclosure, eliminating the expense associated with a separate accessory or mounting bracket—reducing the footprint and keeping it compact.

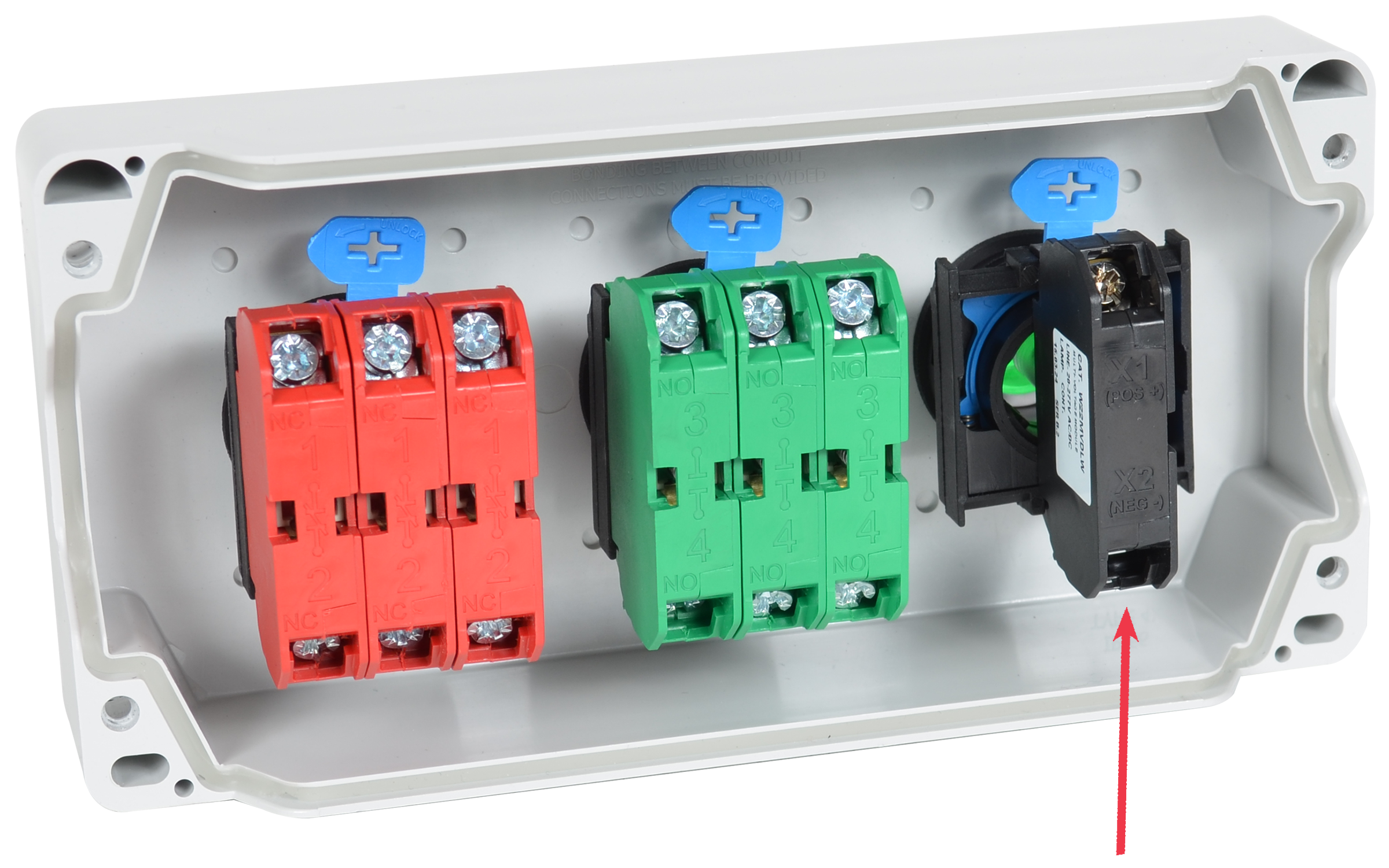

Our snap-on contact blocks are available up to one deep and three across providing multiple circuits in a compact space.
Our non-relampable multi-voltage light modules were designed to operate from 20V to 277V AC or DC without losing light intensity. They can be used with any 22mm IEC illuminated operator significantly reducing inventory costs and simplifying installation.
The enclosure features two lateral M20 conduit entries and two base conduit entries making installation easy.
The unique design of the gasket was engineered specifically for our compact control stations, creating a squeegee effect that forms a permanent watertight seal providing Type 4/4X and IP66 ingress protection.
The screw cover accessory, included as standard, minimizes contamination and prevents debris build-up during wash-downs.
The enclosure cover is keyed for enhanced safety and to prevent misalignment during installation.
c3controls’ maintained push-twist-release operators meet the global compliance standards for EN418 – Safety of Machinery. They feature a unique trigger action and are available in both non-illuminated and illuminated versions.
We manufactured our compact control stations with all stainless steel hardware including #8 thread form screws, ensuring 100% reliability in corrosive environments.
We’ve designed our compact polycarbonate enclosures as a custom fit specifically optimized for use with our 22mm IEC pilot and signaling devices. We also have illuminated options with up to three contact blocks, compatible for factory assembly and installation with our new polycarbonate enclosure.
