Electronic Timing Relays starting at only $21.31! Configure below.
- Compact design, sizes in 17.5mm, 22.5mm and 45mm wide
- Variety of devices with single, dual and multi-functions
- Timing ranges from 0.01 seconds to 9,999 hours
- DIN Rail, Panel, Socket, and enclosure door mountings
- NOTE: Sockets sold separately.
Recommended Sockets for ETR-S45DEI-30H-2CMV1:
GPRA-SP08G1 or GPRA-SP08U1
Top Best Sellers
- 17.5mm, Multi-Function, 10 Range, SPDT
p/n: ETR-D17MF1-03H-1CMV4 - 22.5mm, Dual-Function, 12 Range, DPDT
p/n: ETR-D22DEI-30H-2CMV1 - 45mm, Electronic, Socket-Mount, Dual-Function, 12 Range, DPDT
p/n: ETR-S45DEI-30H-2CMV1 - 22.5mm, Star (Wye) Delta, SPDT
p/n: ETR-D22SS-60S-2XD
There are certain components that form the core of the modern control systems. One such important component used in many applications is an Electronic Timing Relay (ETR).
c3controls’ electronic timing relays are designed to meet the needs of the machine builder and come in a variety of housing sizes from 17.5mm, 22.5mm, and 45mm wide to satisfy the most basic to highly complex timing applications.
Easily select operating modes and timing ranges with accessible setting dials and DIP switches.
Easily select operating modes and timing ranges with accessible setting dials and DIP switches.

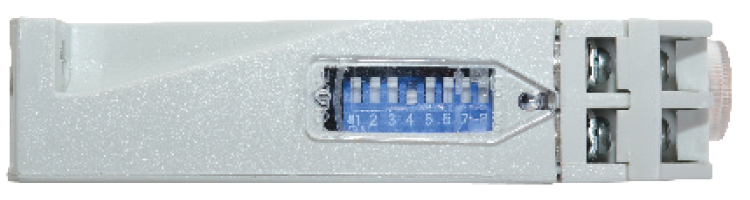

We’ve protected the DIP switches with a transparent cover that keeps out dust and other contaminants and allows you to see the switch settings.
Power ON and relay ON LED indicators make troubleshooting effortless.
Our product line includes timing relays in 17.5mm, 22.5mm, and 45mm form factors.
Wide variety of operating modes satisfies virtually any application: ON-Delay, Interval Delay, Pulse Output, Cycle (ON/OFF), Delay on Make/Delay on Break, and more.
Compact design reduces panel space requirements and is interchangeable with commonly available timing relays.
Quick and simple installation on a 35mm DIN Rail or panel mounted in high-vibration applications.
Our electronic timing relays accept a range of voltage supply inputs, 20 - 240VAC and 12 - 240VDC.
Our electronic timing relays feature hard contact outputs.
c3controls offers a comprehensive line of Electronic Timing Relays, just one example of our superior products designed and manufactured to meet the needs of the machine builder.

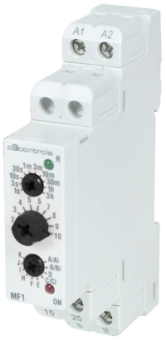

- Available in Multi-Function, 10 Range
- 13 Selectable operating modes
- Selectable timing ranges from 1 second to 3 hours
- SPDT hard contact for switching AC (5A @ 250V) and DC (5A @24V) loads
- Our multi-function relays accept supply inputs from 12V to 240V DC and 20V to 240V AC
- Can be installed on 35mm DIN rail or panel mounted for reduced installation time

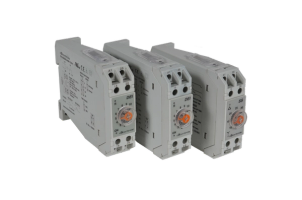

- Available in four styles: Dual-Function, 12 Range & Single Function, OFF-Delay, and Star-Delta (Wye-Delta)
- 5 Selectable operating modes
- Up to 12 selectable timing ranges from 1 second to 30 hours (varies by function)
- SPDT and DPDT hard contacts for switching AC (5A @ 250V) and DC (5A @ 24V) loads
- Our multi-function relays accept supply inputs from 20V to 240V AC and 12V to 240V DC
- Can be installed on 35mm DIN rail or panel mounted for reduced installation time
- Available in Dual-Function, 12 Range
- 2 Selectable operating modes
- Selectable timing ranges from 1 second to 30 hours
- DPDT hard contact for switching AC (5A @ 250V) and DC (5A @ 24V) loads
- Accepts multi-voltage supply input from 20V to 240V AC and 12V to 240V DC
- 8-Pin socket mounting on 35mm DIN rail, panel, or enclosure door
World-class in design and delivering on functionality, our electronic timing relays are engineered to ensure exceptional performance and safety.
UL Listed and CE marked, our electronic timing relays are suitable for use anywhere in the world. The product certifications and electrical ratings are clearly marked on the housing for easy reference during installation.
The IP20 terminals guard against accidental contact with live parts for enhanced protection.
Our electronic timing relays accept a range of voltage supply inputs. See Selection Table or model for capabilities.
We’ve clearly marked the terminals, operating modes and DIP switches, and imprinted connection diagrams to reduce downtime when commissioning and wiring during installation and while troubleshooting.
Still not sure? We offer free product samples for many of our products. No strings attached. We believe in our products and we think you will too, once you give them a try.
What do you know about Electronic Timing Relays?
Maybe it’s a lot. Maybe it’s a little. Maybe it’s even zero. This short paper is intended to provide you with a brief, high level overview of ETRs. What they are. How they function. How they are applied. It also has a quick “cheat sheet” for you on what type of ETR functions are available. It can come in handy on the job, or at dinner or cocktail parties when the conversation turns toward things like (Asymmetrical) Cyclic On First, Cyclic Off First or Retriggerable Single Shot, Electronic Timing Relays. With this information, you will be ready to contribute to the discussion!
The Basics of Electronic Timing Relays
What Do You Know About Electronic Timing Relays?
There are certain components that form the core of the modern control systems. One such important component used in many applications is an Electronic Timing Relay (ETR). In this video, we’ll start by understanding some basics.
