High Density Terminal Blocks

Multiple terminal points in a single molded housing that is simple to install!

High Density Terminal Blocks starting at only $5.33! Configure below.

Product Resources

Product Features

Out of the box and ready to install! Screws come in the backed out position with convenient spring-return open terminals for easy wiring.
Available in 4, 6, and 12 point in a single molded housing.
Rated for 600V, 30A continuous service.
Accommodate #18 to #10 AWG wires (0.34 – 4mm2).
Replacement for GE CR151 terminal blocks.
Accepts solid, stranded, fork, and ring type connectors, including installation of two (2) ring conductors, up to 12-10 AWG ring lug.
Integrated 35mm DIN rail snap and panel mounting geometry allow for installation flexibility.
Meet UL and CSA standards, and are RoHS compliant.
Large marking strip available that can be hand marked or custom printed.

Configure Your Item Here

Please configure the product to display product details.

Test Drive This Product

Still not sure? We offer free product samples for many of our products. No strings attached. We believe in our products and we think you will too, once you give them a try.

Your Solution to Quickly and Efficiently Provide Easy-to-Access Wire Routing.

c3controls’ line of High Density Terminal Blocks is both innovative and user-friendly. World-class in quality, they are simple to install and the large marking strips that can be hand marked or custom printed provide quick and accurate identification of the terminals.

Wide Range of Operation

Multiple terminal points 4, 6, and 12 in a single molded housing rated for 600V, 30A continuous service, providing high density of terminal connections in a compact space.

Wide Range of Operation

Multiple terminal points 4, 6, and 12 in a single molded housing rated for 600V, 30A continuous service, providing high density of terminal connections in a compact space.

Ready to Install

Out of the box and ready to install! Screws come in the backed out position with convenient spring-return open terminals for easy wiring.

Quick Identification

Large marking strip available that can be hand marked or custom printed to your specifications, providing quick and accurate identification of the terminals.

Convenience

c3controls’ high density terminal blocks are the direct replacement for GE CR151 terminal blocks.

Flexibility

Integrated 35mm DIN Rail snap (35mm x 7.5mm x 35mm x 15mm) and screw panel mounting geometry allows for installation flexibility.

Wiring Made Easy

Wiring to the terminal blocks is made easy by unobstructed access to terminals. Accommodates #18 to #10 AWG wires (0.34 – 4mm2) stranded or solid copper wire, single or parallel conductors of the same size and type per terminal.

Time Savings

Individual blocks can be quickly and easily added or removed without disturbing adjacent blocks. Only a screwdriver is required for removal.

The Perfect Range of High Density Terminal Blocks

Available in multiple terminal points from 4, 6, and 12 in a single molded housing, are simple to install, and they carry an electrical rating of 30A @ 600V AC (UL/CSA) and 30A @ 750V AC (IEC).

4-Circuit Terminal Block

600V, 30A continuous service
Accommodates #18 to #10 AWG (0.34 – 4mm2) stranded or solid copper wire
Available panel mounting or 35mm DIN rail mounting for easy assembly

6-Circuit Terminal Block

600V, 30A continuous service
Accommodates #18 to #10 AWG (0.34 – 4mm2) stranded or solid copper wire
Available panel mounting or 35mm DIN rail mounting for easy assembly

12-Circuit Terminal Block

600V, 30A continuous service
Accommodates #18 to #10 AWG (0.34 – 4mm2) stranded or solid copper wire
Available panel mounting or 35mm DIN rail mounting for easy assembly

Accessories

Terminal marker strips available and can be hand marked or custom printed
2-Point Jumper for connecting two adjacent HDTB terminals
35mm steel and aluminum DIN rail in 1 meter and 2 meter lengths

c3controls' High Density Terminal Blocks are Engineered to a Higher Standard

Engineered for durability and easy installation, c3controls’ line of High Density terminal blocks delivers easy installation and distinct functionality and reliability in applications exposed to high impact, shock and vibration.

Proven

Our high density terminal blocks are UL Listed, CSA certified and CE marked meeting global standards requirements.

Heavy-Duty Construction

We mold our terminal block housing from unbreakable thermoplastic and we use quality zinc plated brass and electrolytic copper for our metal parts for excellent conductivity and to minimize corrosion.

Secure Installation

Combination head terminal screws allow the use of straight, phillips, or posidrive screwdrivers, making it easy to apply the proper terminal tightening torque for a more secure, quick and easy installation.

Flexible Installation

Accepts solid, stranded, fork, and ring type connectors, including installation of two (2) ring conductors, up to 12-10 AWG ring lug.

Safety

Integrated IP20 guarded terminals prevent accidental contact with live parts.

High Density

Rugged materials and 8 – 32 terminal screws allow for the terminal block to be used in a wide variety of applications.

Media

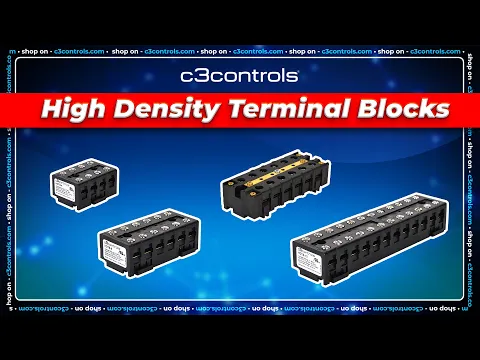

Are Your High Density Terminal Blocks Coming Up Short?

c3controls' innovative and user-friendly High Density Terminals Blocks are not only available, but offer more features, functionality, and value than alternatives in the market. See for yourself in this short HDTB video.

Best Practices for Control Panel Wiring featuring Terminal Blocks

Simplify your wiring and save valuable installation time with c3controls’ terminal blocks. UL listed and CE marked, our terminal blocks undergo the most demanding tests to guarantee longer lasting, easier to maintain panels.
