Tower Lights starting at only $85.89! Configure below.
- 50mm module diameter
- Stackable up to 5 modules in a single assembly
- Voltage options available in 24V AC/DC, 120V AC, and 240V AC
- LED voltage tolerance is +/- 10%
- Three styles of illumination: continuous, flashing and rotary
- Continuous or intermittent sound modules with 80dB or 100dB sound output
- Mounting options in three styles: 50mm direct mount, 50mm panel-mount short base, and 50mm panel-mount tall base
- Vertical mounting with tall and short bases is also available.
- Modules will be assembled vertically starting at the base. Note: Sound modules must be stacked in the last position of a tower light assembly.
- Shipped pre-assembled and ready to install when it arrives at your door.
Top 5 Best Sellers
- Direct-mount, 120V/110V, Flash Red LED/Module, Int. Sound Module
p/n: WTL-50P3-DFRFS3 - Tall base, 24VAC/VDC, Cont. Green LED/Module, Flash Red LED/Module, Int. Sound Module p/n: WTL-50P2-MCDGFRFS3
- Short base, 24VAC/VDC, Cont. Amber LED/Module, Int. Sound Module
p/n: WTL-50P1-MCDAFS3 - Tall base, 24VAC/VDC, Cont. Green LED/Module, Cont. Red LED/Module
p/n: WTL-50P2-MCDGDR - Direct-mount, 24VAC/VDC, Cont. Sound Module
p/n: WTL-50P3-MCDS3
Tower lights have the advantage when it comes to seeing the status of a machine or process. These lights, placed on top of a machine, can be seen from across the shop floor to alert personnel of machine status or an issue. When selecting and installing tower lights, keep important factors in mind, such as: the tower light environment, component materials, installation location, and other factors.
c3controls’ world tower lights are the only U.S. manufactured premier 50mm stack light specified, designed, manufactured and available direct to you from the manufacturer—c3controls, that utilizes internal electrical design engineering and our printed circuit board manufacturing technology.
The 50mm diameter space saving design is stackable to allow up to five modules in a single assembly.
The 50mm diameter space saving design is stackable to allow up to five modules in a single assembly.
Our low power consumption sound modules offer increased tone and are available in continuous or intermittent with field selectable 80dB or 100dB sound output at 1 meter.
Three styles of module illumination are available; continuous, flashing and rotary to aid in machine status indication.
Polycarbonate mounting bases are available in three versions: 50mm direct mount eliminates the need for drilling and reduces installation and our 50mm short and 50mm tall bases secure to the panel utilizing a 4-hole mounting pattern. Vertical mounting with tall and short bases is also available.
Tower lights are shipped pre-assembled, providing convenience of a single catalog number, reducing time spent on the floor and improving profitability.
Our lenses feature Lexan™ plastic for improved visibility and resistance to high impact for reliable performance, even in high ambient temperatures. Lenses are available in amber, blue, clear, green and red with integrated color LEDs.
Voltage options available in 24V AC/DC, 120V AC, and 240V AC.
Clear markings provide ease of installation and will never wear off.
When you need reliable, high quality tower lights for all your signaling needs look to c3controls. Our Series WTL World Tower Lights feature a 50mm (1-31/32”) diameter space saving design that is stackable to allow up to five (5) modules in a single assembly. Easy to assemble and disassemble with low power consumption integrated LEDs—no complicated center posts. c3controls’ Series WTL World Tower Lights will help reduce your total installed costs and enhance the features and performance of your equipment.
- Stackable up to five (5) modules in a single assembly
- Wide range of voltage options in 24V AC/DC, 120V AC, and 240V AC
- 50mm (1-31/32”) module diameter space saving design
- Shipped pre-assembled and ready to install when it arrives at your door
- Low energy consumption LED lamps—75% brighter illumination for better visibility
- High quality Lexan™ platic lenses with matching integrated LEDs available in five colors to provide better visibility and resist high impact for reliable performance
- Now available, clear lens with five LED color options—the bold illumination of the colored LEDs eliminates the need for colored lenses
- Integrated LEDs are available in three styles of module illumination; continuous, flashing, and rotary
- Field selectable, 80dB or 100dB sound modules with low power consumption
- Available continuous and intermittent sound modules
- Rugged polycarbonate housing resists high impact for reliable performance
- Mounting options available in three styles; 50mm direct-mount, 50mm panel-mount short base, and 50mm panel-mount tall base
- Available for vertical mounting with tall and short bases
- Integrated bases for quick and easy wiring to the terminals—no complicated center post required
- Polycarbonate construction for excellent durability, superior corrosion resistance, moisture rejection and electrical insulation
Tower lights designed to provide exceptional performance and long electrical life regardless of your application and our rigorous in-house testing make them tolerant to high impact, shock and vibration. All c3controls tower lights are UL Listed and CE marked meeting global standards requirements for indoor and outdoor use.
cULus Listed and CE marked meeting global standards requirements, our world tower lights are suitable for use anywhere in the world. All c3controls products are compliant to the RoHS directives.
No tools required—simply line up the module marking and arrow and turn; 25⁰ clockwise to tighten and 25⁰ counter clockwise to loosen.
Each module features a gasket forming a permanent seal and all assemblies are rated Type 4/4X as standard for watertight and corrosion resistance. In addition, they are also listed for Type 1, 2, 3, 3R, 12, 13 and IP65.
Wiring is made simple with our integrated heavy-duty polycarbonate bases. No complicated center posts required for construction—just wire to the terminals.
Tower lights are shipped pre-assembled, providing convenience of a single catalog number, reducing time spent on the floor and improving profitability.
The 50mm diameter space saving design is stackable to allow up to five modules in a single assembly.
Rugged polycarbonate construction for excellent durability and resistance against severe impact, shock, corrosion, moisture rejection and electrical insulation.
Now available, clear lens with five LED color options. The bold illumination of the colored LEDs eliminates the need for colored lenses.
c3controls selects the highest quality raw materials to ensure our products outlast the competition, including Lexan™ plastic for our lenses—improving visibility and resistance to high impact for reliable performance, even in high ambient temperatures.
c3controls’ world tower lights are the only U.S. manufactured premier 50mm stack light specified, designed, manufactured and available direct to you from the manufacturer—c3controls, that utilizes internal electrical design engineering and our printed circuit board manufacturing technology.
Industrial Control Basics: Part 5 – Tower Lights
A lot of people don’t know this, but shortly after Thomas Edison perfected his light bulb he put one on top of the other, and then another one on top of the first two and invented the first stack light. He invented it so that he could see the status of his manufacturing machines from a distance. “Really?” you might say. Well, I don’t know for sure, but it could have happened that way. (And that’s what’s important.)
Push Buttons, Pilot Lights and Tower/Stack Lights have come a long way since Thomas Edison. A lot of things happened, then the first CRT-based HMI’s appeared in the 1980’s. Those gave way to flat panels and LED touch screens, advanced software for data monitoring and collection that is now on “the cloud.” Despite all of those advances, sometimes you just want to look out at your farm of machines and see all those green lights happily shining, or quickly identify that trouble maker glowing red. Yep. Sometimes you just can’t beat a tower light. BUT, there is more to the simple tower light that you might think.

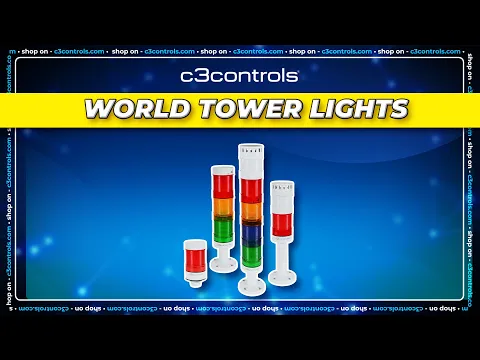

LED Stack Lights in action!
Experience the power of industrial World Tower Lights in action! In this video, we shine a spotlight on the outstanding features and benefits of these essential devices in industrial machinery.
See how our stack lights are engineered to provide clear and effective status indicators, improving operational efficiency and workplace safety.
The Basics of a Tower Light
Tower lights have the advantage when it comes to seeing the status of a machine or process. These lights, placed on top of a machine, can be seen from across the shop floor to alert personnel of machine status or an issue. Seeming simple, tower lights remain as a significant component of automation and machine installations, world-wide. When selecting and installing tower lights, keep important factors in mind, such as: the tower light environment, component materials, installation location, and other factors.
Watch this video to understand the basics of a tower light, including color-coding and functions.
World Tower Lights – Product Showcase
The story behind the design of the only premier U.S. manufactured 50mm stack light. See how our engineering team used market insight, customer feedback, and some ingenuity to create a design specification for a new line that resulted in products with brighter illumination, superior acoustics, and more mounting options.
