Wire Duct starting at only $5.59! Configure below.
- Wire Duct and Replacement Covers do not qualify for free ground shipping.
- Rigid, “U” shaped duct with non-slip cover available in grey and white.
- 13 Selectable dimensions from 25mm wide up to 80mm, and up to 2 meters in length.
- Optional adhesive backing.
- Note: Separate covers should be purchased for replacement only.
Top 5 Best Sellers
- 25x80, 2m, Narrow, Grey
p/n: WD-B25X80N - 40x80, 2m, Narrow, Grey
p/n: WD-B40X80N - 40x60, 2m, Wide, White
p/n: WD-B40X60WWH - 40x80, 2m, Wide, Grey
p/n: WD-B40X80W - 40x60, 2m, Narrow, Grey
p/n: WD-B40X60N
There are problems with the installation. Numerous phone calls have been made. Remote trouble shooting hasn’t helped. You were assured that everything was properly installed and in order. You send someone out to the location, or maybe you even went there yourself. What did you find? Loose wires. Unmarked wires. Un-grounded shielding. Poor terminations. It’s a mess. And, it’s the reason for the failure.
c3controls’ Series WD Wiring Duct and accessories speed your wire/cable management and installation. The wide variety of types and options will increase productivity, reduce installation costs, and will give you the most attractive and organized control panels in the industry!
Mounting hole patterns with elongated slots comply with DIN 43659 for global installation flexibility.
Mounting hole patterns with elongated slots comply with DIN 43659 for global installation flexibility.
Flush side-wall and duct provide increased wire capacity and a pleasing, finished look.
The V-shaped slot lead-in makes wire insertion fast and easy.

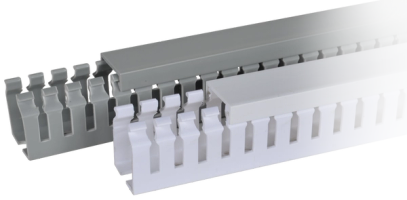

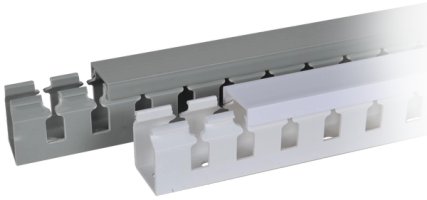

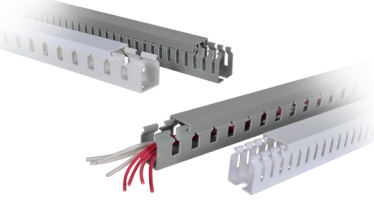

Two slot types are available to meet your capacity and flexibility needs: Narrow Slot for more precise wiring and Wide Slot for larger wires and bundles.
Put an end to all the eyeballing with c3controls’ optional adhesive. It’s an ideal convenience feature that allows you to temporarily stick your wiring duct where you want it on the panel before you permanently mount it. Just position, press, then drill and tap. Now that’s convenient.
Non-flammable (UL94 V-0), rigid PVC won’t warp, peel, chip, crack, or become brittle, and resists oil, salt solutions, and fungus for superior performance in any environment.
Complete catalog number and dimensions printed on the side of the duct for quick identification and utilization.
Got questions? Our Customer First and Product Specialists welcome the chance to discuss your needs and answer your questions. Call 724.775.7926 or email us.
We offer a wide range of styles and sizes that will match all of your wiring wants and needs.
- Rigid, “U” shaped duct with non-slip cover
- Available in grey and white
- 13 selectable dimensions from 25mm wide up to 80mm, and up to 2 meters in length
- Optional adhesive backing for convenient and fast installation
- The option to choose from one of our popular configurations or the ability to create your own custom wiring duct
- Rigid, “U” shaped duct with non-slip cover
- Available in grey and white
- 13 selectable dimensions from 25mm wide up to 80mm, and up to 2 meters in length
- Optional adhesive backing for convenient and fast installation
- The option to choose from one of our popular configurations or the ability to create your own custom wiring duct
Engineered for durability and easy installation, c3controls’ line of Wire Duct delivers convenience, safety, and reliability in applications exposed to high vibration.
Our Wire Duct covers are UL Listed and CE marked, and RoHS compliant for global acceptance.
Restricted slot design ensures that wires are held in place, even when the cover is not installed, allowing for durable performance in high vibration applications.

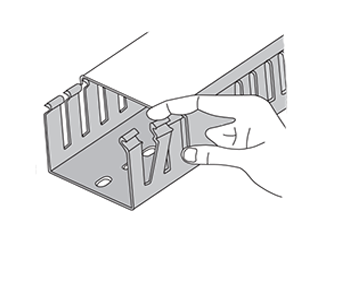

Smooth, rounded edges on duct fingers and covers prevent cutting and abrasions to hands and wires.
Interlocking, non-slip cover with two contact points prevents the cover from sliding, even in high vibration applications—and ensures a rigid duct assembly.
Snap-off, side wall fingers are scored to easily enlarge slots for any size wire or wire bundle. No tool is required to “snap-off” fingers, and scoring ensures clean break-offs, eliminating sharp edges.
Non-flammable (UL94 V-0), rigid PVC won’t warp, peel, chip, crack, or become brittle, and resists oil, salt solutions, and fungus for superior performance in any environment.
Industrial Control Basics: Part 6 – Wire & Cable Management
Has this ever happened to you? There are problems with the installation. Numerous phone calls have been made. Remote trouble shooting hasn’t helped. You were assured that everything was properly installed and in order. You send someone out to the location, or maybe you even went there yourself. What did you find? Loose wires. Unmarked wires. Un-grounded shielding. Poor terminations. It’s a mess. And, it’s the reason for the failure.
Someone once said, “The simple things in life bring the most happiness.” The simple things also cause a lot of problems. The easiest part of a control installation should be the wiring. What do you need? Wire cutters/stripper, screwdriver, connectors, and a crimper. Anyone can do it! Right? Nope, anyone can’t do it. In fact, it takes intelligence, skill and planning to properly wire a control system. This paper can help!
Wire and Cable Management in an Industrial Control Panel
Trends such as maximum efficiency, minimal downtimes, quick turnaround times, and time-to-market capabilities are critical to industrial users. These demands are fulfilled using various technology components that are interconnected by a vast network of wires and cables. This increased use of wires and cables stresses upon the utilization of an efficient wire and cable management system. This is because wires and cables may clutter the workspace, cause accidents, and inflict several potential issues if they are not managed properly.
Watch this video to understand effective wire management and learn how to achieve a neat and organized workplace.
